Ultrasonic Flow Meters

Ultrasonic Flow Meters

An ultrasonic flowmeter is a form of non-intrusive volumetric flow measuring device, which utilises sound waves to calculate the average velocity of a fluid moving through straight pipe.

CMC Technologies provides a multiple variety of both portable and fixed ultrasonic flow meters to suit almost every application.

Fixed

CMC Technologies Ultrasonic Flow Meters – Fixed

This is a budget ultrasonic flowmeter suitable for most general applications – mostly clean water. The maximum tolerance for these meters is up to 3% solids and bubbles.

Features:
· Measurement accuracy 1%
· Converter protection class IP67, transducer protection class IP68
· Wide measurement range – pipe sizes from DN15 to DN6000
· Three types of installation: wall mounted, DIN rail mounted, explosion proof box mounted

Download the CMC Technologies Ultrasonic Flow Meter – Fixed catalogue here: [wpfilebase tag=file id=182 tpl=simple /]

Ultra Fm5

CMC Technologies Ultrasonic Flow Meters – Portable

This budget ultrasonic flowmeter is suitable for most general applications – mostly clean water. The maximum tolerance for these meters is up to 3% solids and bubbles. The portable flowmeters are available ex-stock in our Sydney Warehouse.

Features:
· Measurement accuracy ±1%
· Wide measurement range – pipe sizes from DN15 to DN6000
· Built-in rechargeable Ni-MH battery, for over 12 hours of continuous operation

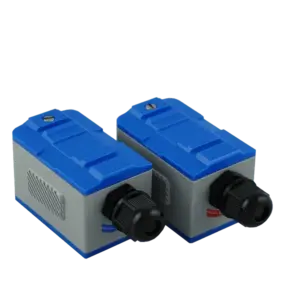

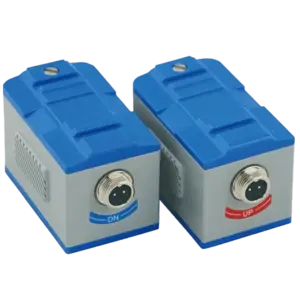

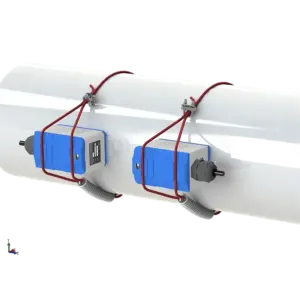

· Non-intrusive measuring via clamp-on transducer – no pressure drop, no pipe disturbance
· Built-in 24K data logger for storage of over 2000 lines of measuring data

Download the CMC Technologies Ultrasonic Flow Meter – Portable catalogue here: [wpfilebase tag=file id=183 tpl=simple /]

Dsp1
Dsp2
Dsp3

Smart Measurement Alia Ultrasonic Flow Meters

The model ALSONIC DSP uses Digital Signal Processing technology enable the measurement of fluid velocity even for the most demanding of fluids.

Features:
· Colour graphic LCD display (128 x 64) for flow, total & signal shape
· 4.0 Mbytes data logger with up to 200,000 data fields
· Velocities from ±0.03 to ±40 feet/sec (±0.01 to ± 12 m/s)
· Measures any liquids containing solids ≤ 30% suspended solids, including waste water
· Transducers available for pipe sizes from ½” to 240″ (15 to 6000 mm)
· Accuracies of ±1.0% of reading with single path and ±0.5% of reading with dual path
· Oscilloscope feature indicating three-dimensional analysis of the flow stream
· Touch-pad key function
· Patented Fine Time measurement technology
· Data logger function includes date, totalizer, and diagnostics
· Response time < 1 second

Download the Smart Measurement Alsonic DSP – Fixed catalogue here: [wpfilebase tag=file id=180 tpl=simple /]

Download the Smart Measurement Alsonic DSP – Portable catalogue here: [wpfilebase tag=file id=181 tpl=simple /]
