ATEX Approved Static Grounding Clamps

To discharge the electrostatic charge from various equipment, we offer a wide range of static grounding clamps with straight and spiral cables. Clamps are either single pole to accept a single-core cable or with the capability to accept a dual-core cable. Self-testing clamps with LED indication as well as ground monitoring systems with interlocking control are also available (see our other pages)

Sc 06 1
Sc 06 Jaw L
Sc 05 1
Sc 05 Jaw
Sc 01 4
Sc 01 Jaw
Sc 06 1

CMC ALPTEC SC-06 Static Grounding Clamp

· 304/316L stainless steel clamp construction with three stainless steel points.

· ATEX approved

· Ideal for use in the areas where high corrosion resistance is required.

Sc 05 1

CMC ALPTEC SC-05 Static Grounding Clamp

· 304/316L stainless steel clamp construction with three stainless steel points.

· ATEX approved

· Ideal for use in the areas where high corrosion resistance is required.

CMC SC04 Static Clamp

CMC ALPTEC SC-04 Static Grounding Clamp

· Aluminum clamp construction with bronze jaws

· ATEX approved

· Grounding and bonding on refueling vehicles and aircraft

CMC SC03 Grounding Clamp

CMC ALPTEC SC-03 Static Grounding Clamp

· Aluminum clamp construction with three stainless steel points.

· ATEX approved

· Grounding and bonding metal objects ranging from 55 gallon drums to large metal totes and IBCs.

CMC SC02

CMC ALPTEC SC-02 Static Grounding Clamp

· Aluminum clamp construction with two stainless steel points.

· ATEX approved

· Grounding and bonding metal objects ranging from 55 gallon drums to large metal totes and IBCs.

Sc 01 4

CMC ALPTEC SC-01 Static Grounding Clamp

· Die-cast aluminium construction with two stainless steel points.

· ATEX approved

· Strong spring pressure allows the clamp to penetrate multiple layers of paint or corrosion build-up, so that the proper contact is made.

· Suitable for grounding and bonding a wide range of containers, drums and machinery.

Download the Catalog: [opd id=”4″]

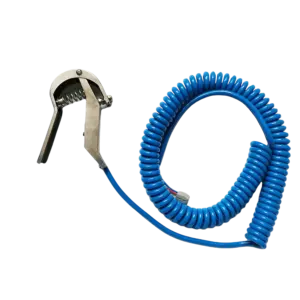

CMC ALPTEC SA-YP-YF- Grounding Clamp With Visible & Audible Alarms

· Low engery consumption design makes battery replacement unnecessary during normal operation

. Digital resistance display and self-monitoring clamp

· Ex ia IIC T4 Ga Certification

· After 60 seconds of continuous alarm, it will go to rest status and will return to normal in a closed circuit

· The electrical circuitry is totally covered by epoxy resin, ensuring damp-proof, rust-proof, corrosion-proof & shock-proof.

E67723d8 9296 49c5 B5b2 62381fd646aa

C Clamps

ALPTEC makes a series of stainless steel C clamp in sizes 3/4” and 1-1/2”.

· Used to provide semi-permanent connections on flat material.

· Can be produced to specific sizes.



Model

Size

CC-01

3/4”

CC-02

1 1/2”

65202927 7e00 4bf0 822a 655769a8cfc8

Pipe Clamps

ALPTEC makes a series of adjustable bronze pipe clamps from sizes 1/2” up to 3”.

· The rugged design provides a positive connection to penetrate paint and rust.

· Equipotential connection of loading arms and pipes.

· Can be produced to specific sizes.



Model

Pipe Range

PC-01

1/2”

PC-02

1”

PC-03

1 1/2”

PC-04

2”

PC-05

2 1/2”

PC-06

3”

Grounding Assemblies with SC01-SC06 Clamps and spiral cable (SC01 as an example below, this configuration can be done to all other CMC clamps)

· One SC-01 clamp with 4m or 7m spiral cable & terminal plug

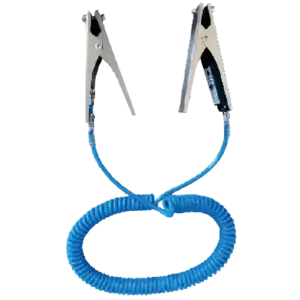

· Two SC-01 clamps with 4m or 7m spiral cable
· One SC-01 clamp with 4m or 7m spiral cable & 1’’ pipe clamp
· One SC-01 clamp with 4m or 7m spiral cable & 3/4’’ C clamp

Grounding Assemblies  with SC01-SC06 Clamps and Stainless Steel wire (SC01 as an example below, this configuration can be done to all other CMC clamps)

· One SC-01 clamp with stainless steel wire & terminal plug
· Two SC-01 clamps with stainless steel wire
· One SC-01 clamp with stainless steel wire & 1’’ pipe clamp
· One SC-01 clamp with stainless steel wire & 3/4’’ C clamp
